Shannon Control Unit (SCU) — Cruise Control for LLM Training

Model Weights: Llama 3.2 Community License | Code: AGPL-3.0 for research/academia — commercial licenses available (GitHub)

Like cruise control maintains your speed regardless of hills, SCU maintains optimal regularization regardless of data complexity.

Set your target information ratio ( S^* ), and our PI controller automatically adjusts ( \lambda ) to maintain it throughout training. No manual hyperparameter tuning required.

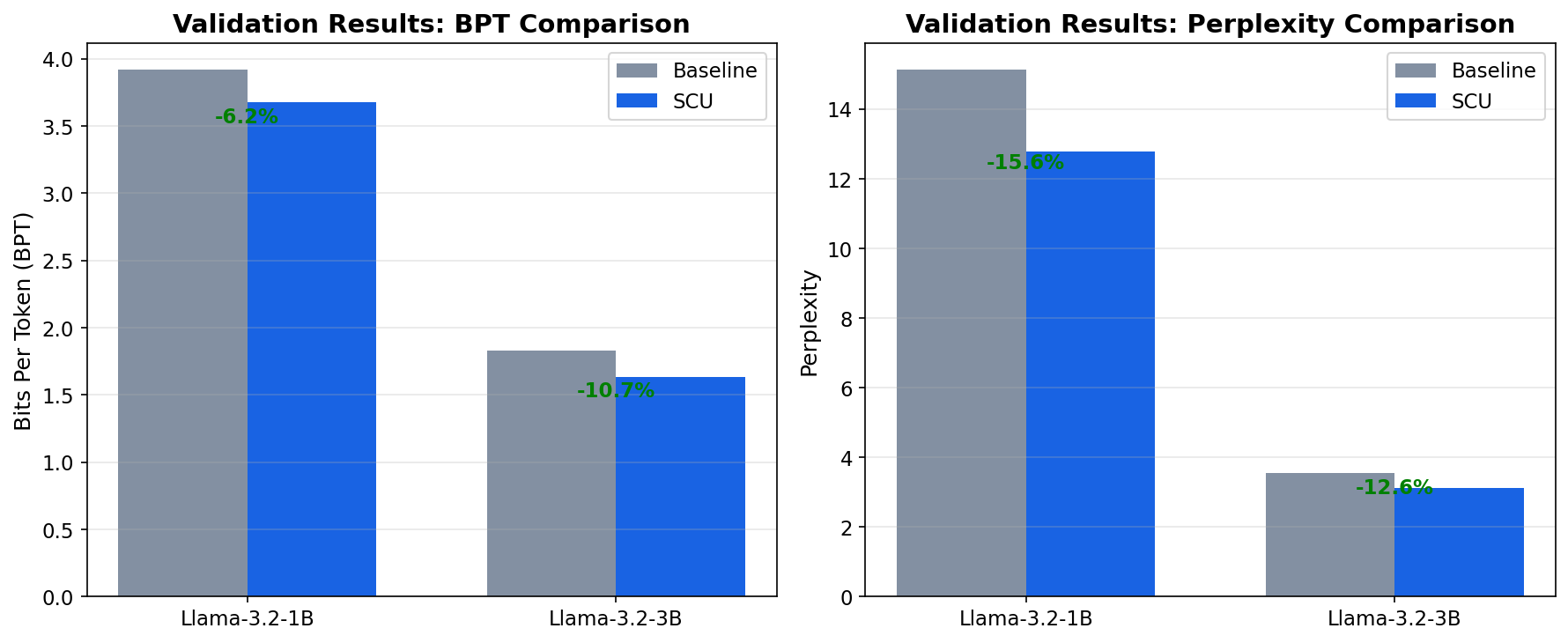

Validated Results:

Model	Metric	Baseline	SCU	Improvement
Llama-3.2-1B	BPT	3.920	3.676	-6.2%
	Perplexity	15.14	12.78	-15.6%
Llama-3.2-3B 🎯	BPT	1.830	1.635	-10.6%
	Perplexity	3.56	3.11	-12.6%

Status: Validated at 1B/3B scales | Seeking partners for 7B+ external validation

View validation artifacts | Evaluation protocol

Available Models

Model	Location	Training	Final BPT	Improvement
Llama-3.2-1B + SCU ✅	hunterbown/shannon-control-unit	PI Control (S*=1%)	3.676	-6.2%
Llama-3.2-3B + SCU ✅	subfolder="3b-scu"	PI Control (S*=3%)	1.635	-10.6%

Note: Both are LoRA adapters. Load base models from Meta first, then apply our SCU adapters.

Data Files

• Ablations (CSV):
  • PI Control
  • Fixed λ=1.0
  • Fixed λ=2.0
  • Fixed λ=5.0
• Validation summary (JSON): results/3b_validation_results.json

Planned Comparisons and Baselines

To rigorously validate the SCU approach, we plan to compare against the following baselines, reporting means and 95% CIs across multiple seeds with fixed token budgets:

• Optimal fixed regularization (grid/Bayesian search for the best constant λ)
• Scheduled regularization (tuned λ decay: linear, cosine)
• Adaptive KL control (controller targeting a fixed KL from the base model)
• Hyperparameter sensitivity (S*, Kp, Ki, σ) and step‑time overhead (<1–2%)

Control Telemetry

Adaptive λ(t): Real-time regularization strength adjustments in response to S-ratio deviations

---

How SCU Training Works

Real control dynamics: S(t) oscillates around target (1.0% ± 0.2pp) showing active PI control adjustments. This is actual telemetry from training, not a simulation.

Ablation Study: Adaptive vs Fixed λ

Result: PI control achieves 1.8% better BPT than best fixed-λ, proving adaptive regularization works.

---

Quick start (adapters)

from transformers import AutoModelForCausalLM, AutoTokenizer
from peft import PeftModel
import torch

# For 1B model (validated with 6.2% BPT improvement)
base_id = "meta-llama/Llama-3.2-1B"  # accept terms on HF first
base = AutoModelForCausalLM.from_pretrained(base_id, device_map="auto", torch_dtype=torch.float16 if torch.cuda.is_available() else torch.float32)
tok  = AutoTokenizer.from_pretrained(base_id)
if tok.pad_token is None: tok.pad_token = tok.eos_token
base.config.pad_token_id = tok.pad_token_id

# Load the validated 1B adapter (main directory or 1b-scu/)
model = PeftModel.from_pretrained(base, "hunterbown/shannon-control-unit")

# Or for 3B models, use:
# base_id = "meta-llama/Llama-3.2-3B"
# model = PeftModel.from_pretrained(base, "hunterbown/shannon-control-unit", subfolder="3b-scu")

Demo notebook: Open in Colab

---

How It Works (Cruise Control Analogy)

Just like cruise control in your car:

• You set the target: Choose your information ratio $S^*$
• SCU maintains it automatically: PI controller adjusts $\lambda$ in real-time
• No manual intervention: Works across data distribution shifts and training dynamics

Technical Details:

• Control variable: $S=\frac{\text{ParamBPT}}{\text{DataBPT}+\text{ParamBPT}}$
• Control law: $\lambda \leftarrow \lambda \cdot \exp(-(K_p \cdot \text{error} + K_i \cdot I))$
• Result: Automatic regularization without hyperparameter sweeps

Key Research Question: Optimal $S^*$ scaling laws are still being discovered. We found ~1.0% works for 1B models and ~2.88% for 3B models in our setup. We are investigating whether there is a simple “natural operating point” for $S^*$ that depends on model size ($M$), training tokens ($T$), and data domain ($D$): a compact relation $S^* \approx f(M, T, D)$. This is an open question; contributions welcome.

Get Involved (7B+ welcome)

• Validate at larger scales (7B+), try small S* targets, and share observations (stable S* band, final BPT/ppl).
• Include: model size (M), tokens (T), domain (D), S* target, Kp/Ki, σ, steps, and results.
• Where: open an issue at https://github.com/Hmbown/shannon-control-unit/issues or email [email protected].

---

Licensing & IP

• Model weights: Meta Llama 3.2 Community License (inherited from base model)
• SCU training code: AGPL-3.0 (research/academia). Commercial licenses available (GitHub repository)

Limitations and Threats to Validity

Current results are for LoRA finetunes of Llama‑3.2 1B/3B on a ~512k‑token WikiText‑103 subset. We have not yet shown results for full‑parameter training or 70B+. SCU must be compared against optimally tuned fixed‑λ and strong schedules, as well as adaptive KL targeting, with multi‑seed reporting and downstream checks (e.g., MMLU/GSM8K) to ensure utility is not reduced.

Positioning: SCU is a training‑time mechanism that adjusts λ to maintain a target information ratio S*; it is distinct from inference‑time uncertainty/refinement loops that modify generation without changing the model’s weights.

• IP status: U.S. patent pending (provisional filed September 2025)

Repro tips: block size 1024, batch 1, grad-accum 4, gradient checkpointing on, use_cache=False.
